Spur gear 48DP 80Tooth
AX30665
Steel Input Shaft 5x29mm (2pcs)
AX30408
• 5 x 29mm input shaft
• Steel construction for durability
• Black oxide coating to resist corrosion
Aluminum Servo Horn 23T
AX30834 axic0834
FEATURES Hard anodized aluminum construction Compression mount, two screws install on either side of arm and tighten center hole around servo spline
INCLUDES Axial 23T Aluminum Servo Horn with two Socket Head Screws
SPECIFICATIONS Length: 0.90" (23mm) from center of servo mounting hole to end of arm Hole Diameter: 3mm Pitch:3x30
Aluminum Servo Horn 24T HiTec Servos
AX30835
INCLUDES Axial 24T Aluminum Servo Horn with two Socket Head Screws
SPECIFICATIONS Length: 0.94" (24mm) from center of servo mounting hole to end of arm Hole Diameter: 3mm Pitch:3x30
Diff Pin 2X16 5MM BX MT SC 4.18
DIDC1037
Shock Tower Front BX 4.18
DIDC1019
Diff Ring & Pinion Gear BX MT SC 4.18
DIDC1003
Diff Bevel Gears BX MT SC 4.18
DIDC1002
XR10 C Hub Carrier Set
AX80062
Gear Set
AX80010
• Gear set
• Molded plastic transmission gears
• Compatible with Wraith, SCX10 and AX10 transmissions
Diff Case - Small
AX80002
This is the Small Differential Case for the Axial Rock Crawler.
FEATURES Plastic construction, black in color
INCLUDES Two small differential cases
REQUIREMENTS Installation on the vehicle
SPECIFICATIONS Diameter: .98" (25mm) Height: .66" (17mm)
Zero Ackerman Steering Plate
AX30778
Pinion 48DP 14T
AX30572
Version 1
• 14t aluminum pinion
• Compatible with 48 pitch gears
• Aluminum construction • Black anodize
• Laser etched tooth count for easy identification
Version 2
• 14t steel pinion
• Compatible with 48 pitch gears • Powder steel construction
• Stamped tooth count for easy identification
Alum. Knuckle black
AX30496
FEATURES Aluminum Construction Black in Color CNC Machined
INCLUDES Two Aluminum Steering Knuckles
REQUIREMENTS Four M3x10mm Button Head Hex Screws
SPECIFICATIONS Length: 41mm (1.61") Height: 34mm (1.33")
WB8 Universal Joint Rebuild Kit (2pcs)
AX30463
• WB8 universal joint rebuild kit
• Includes new pivot and drive pins
• Stainless steel construction for durability
Threaded Alum. Pipe 6x98mm orange
AX30448
• 6 x 98mm threaded pipe
• CNC machined aluminum for precision
• Tapped for M3 threaded studs
Straight Axle 6x104.50mm (2pcs)
AX30421
• 6 x 104.5mm straight axle set
Solid Axle Dogbone 6x74mm (2pcs)
AX30420
• 6 x 74mm solid axle dogbone set
AX10 Scorpion Slipper Clutch Set
AX30414
Helps prevent drivetrain from damage on rocks and high torque motors by allowing adjustablity
Inner Slipper plate (1) Outer Slipper plate (1) Slipper Pad (1) Spring 8.5x12 (1) Pin 1.5x8mm (2) Screw 3x6mm (3) M4 Nylon Lock Nut (1) Washer 3x6x.5mm (1) Washer 4x8x.5mm (1) Washer 5x10x.5mm (1) Drive gear Shaft 5x53.5mm (1)
Installation on vehicl

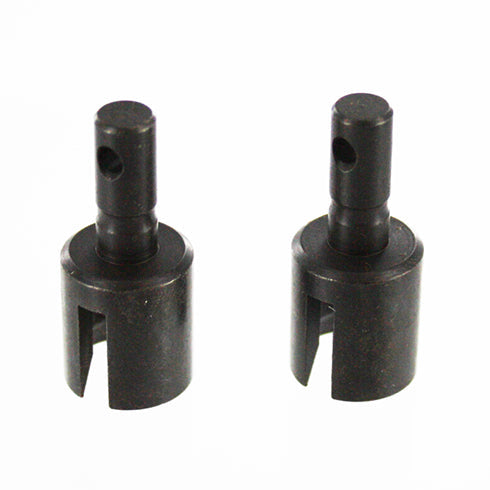

Outdrive Shaft (2pcs)
AX30404
